Acupanel® Metal Aluminium Acoustic Wall Panels
Brushed aluminium metallic slat panels with an acoustic felt backing.
You need 0 panels to cover 0 m² (incl. 10% waste)
Trade pricing available. Join now
Order samples
Select the finishes you'd like to try
What you'll need
Specifications
- Slat Width
- 27mm
- Slat Spacing
- 13mm
- Panel Thickness
- 19mm
- Panel Width
- 600mm
- Panel Length
- 2400mm
- Coverage
- 1.44 m² per panel
- Weight
- 9.7kg
- Material
- Metallic foil on MDF, recycled acoustic felt backing
- Finish
- Brushed Aluminium
- Sound absorption (NRC)
- 0.75, on 45mm battens, measured to EN ISO 354
- Fire rating
- Not rated
How to install
-
1
Measure
Measure your wall height and width. Calculate how many panels you need using our coverage calculator.
-
2
Cut
Cut panels to size using a mitre saw or circular saw. Mark cutouts for sockets from the back of the panel. Sand any cut edges lightly.
-
3
Sand
Lightly sand any cut edges with fine-grit paper. Removes rough fibres and gives a clean, finished look.
-
4
Mount
Apply construction adhesive to the back of each panel. Press firmly against the wall, starting from the bottom. Use panel pins for extra hold while the adhesive sets.
Description
Overview Make a bold design statement with the Acupanel® Metal range. Featuring a refined metallic surface with texture, these panels are designed to bring depth, light and architectural impact to contemporary interiors.

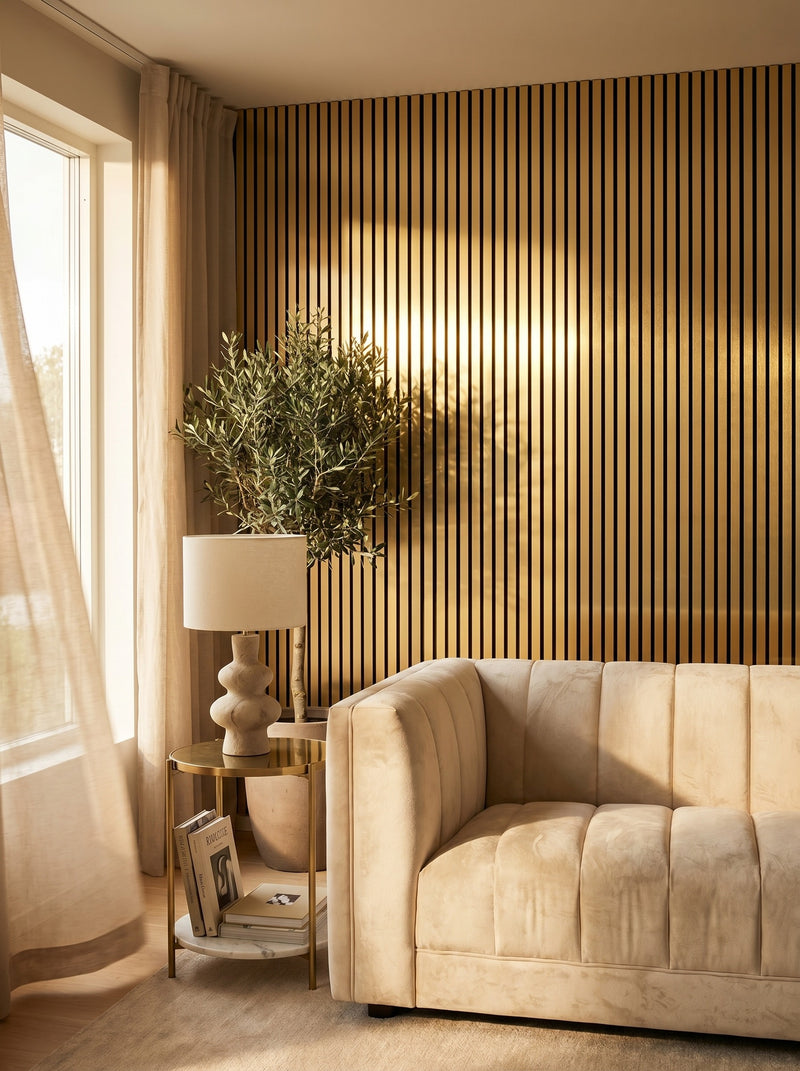

Each panel is finished with a metallic foil surface in carefully curated tones such as gold, aluminium and bronze. The surface has a gentle sheen and directional texture, creating a dynamic effect that responds beautifully to both natural and artificial light. Applied to black MDF slats and mounted on an acoustic felt backing, the result is a panel that delivers both visual presence and acoustic performance.
The signature slatted design creates shadow gaps between each slat, enhancing the metallic finish and adding dimensionality to walls and ceilings. Alongside its striking appearance, the Acupanel® Metal range helps to reduce echo and improve sound quality, making it suitable for residential feature walls, commercial interiors, hospitality spaces and statement design installations.
Designed for those looking to elevate their space beyond flat colour, Acupanel® Metal offers a sophisticated, texture-led alternative where modern acoustics meet metallic design.
Key Features Innovative: The original slatted wall and ceiling panel solution. Metallic: features a metallic-like wrapped slat finish. Versatile: Perfect for both homes and businesses. Eco-Friendly: Made with recycled materials. Easy Setup: Quick and easy installation process. Sound Absorption: Superior Class-A rating. Free Express UK Shipping: Complimentary UK mainland delivery.
Specification 240cm x 60cm
2400mm (H)
600mm (W)
19mm (D)
1.44m² Coverage
Installation & Downloads
The Acupanel® range has been designed to be installed with ease. We recommend either screwing the panels straight into the wall, using the correct fixings, through the acoustic felt or if you are looking to increase the sound properties further, screwing them into batons. If installing on ceilings, the panels can be screwed straight into ceiling joists.
When cutting your panels, it's important to check where you are cutting in relation to the backing staples. If you cut the panels close to the staples, you may notice some slats lifting away from the backing where the panel has been cut. This is completely normal and is quickly rectified by adding additional staples through the backing felt or using a grab adhesive on the back of the slats.
Acupanel® Technical Sheet Acupanel® Website Delivery The Acupanel® range is fully stocked in our UK warehouse. We offer free delivery on our Acupanel® range!
Delivery and returns
Delivery options and timing vary by product. View the methods available at checkout.
30-day returns on all orders
Items must be unopened and in original packaging
Contact us to arrange a return
Notify me
What sets it apart
Light, sheen, architectural impact.
Metal Acupanel® brings a reflective finish to a proven acoustic profile. Each slat carries a wrapped metallic surface, mounted on a recycled acoustic felt core that softens sound while diffusing light across the room.
Three finishes, one core, available in brushed gold, bronze, and aluminium. Built for hospitality, retail, and architectural interiors where light, texture, and silence all matter.
How it works
1
Measure
Measure your wall height and width. Calculate how many panels you need using our coverage calculator.
2
Cut
Cut panels to size using a mitre saw or circular saw. Mark cutouts for sockets from the back of the panel. Sand any cut edges lightly.
3
Sand
Lightly sand any cut edges with fine-grit paper. Removes rough fibres and gives a clean, finished look.
4
Mount
Apply construction adhesive to the back of each panel. Press firmly against the wall, starting from the bottom. Use panel pins for extra hold while the adhesive sets.
